Zip Track Blinds
A New Generation of Outdoor Space Solutions.
Zip Track Blinds is the latest popular windproof sunshade and rain products, can be applied to: high-end hotels, home balcony, window sill, pavilion, sunroom and other places; And can realize the balcony window sealing, partition, windproof rain shading various functions; Aluminum alloy frame, sunny fabric, a variety of colors, open rate optional; The color pattern can be customized, which can realize full shading/semi-shading, and the actual shading effect is better than the traditional inner shading; The fabric of windproof curtain has been tested and certified by domestic and foreign authorities, with green environmental protection, fire retardant, no formaldehyde and other characteristics, ten years of product quality assurance, superior technology, excellent quality.

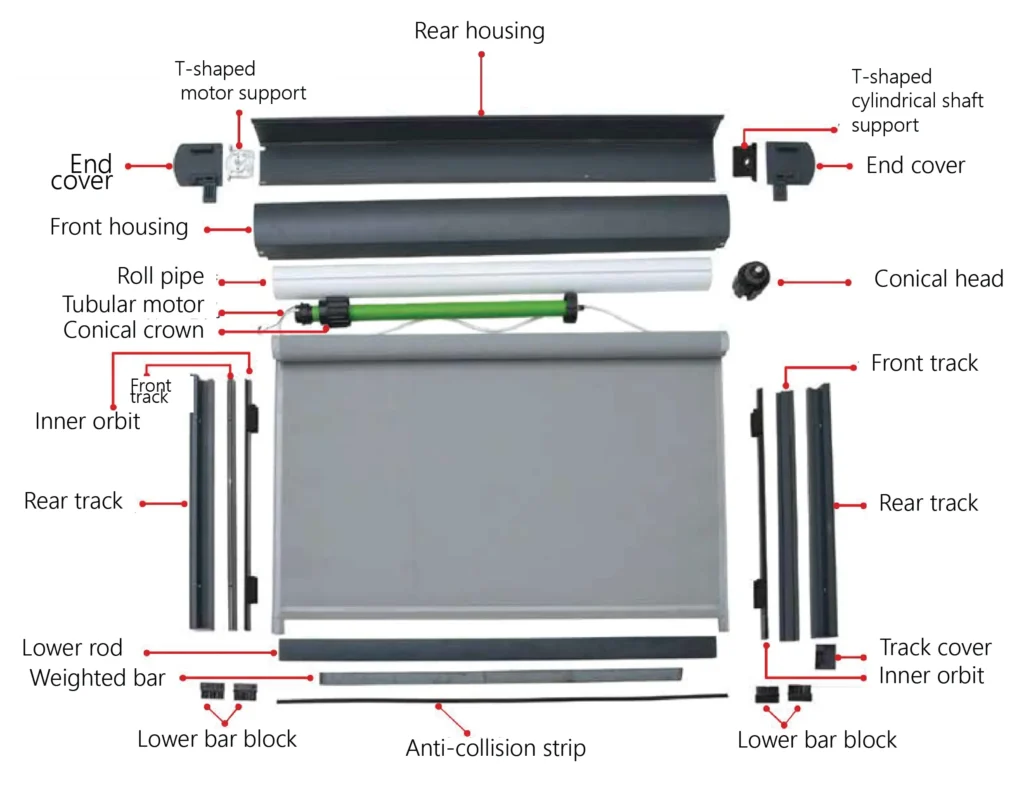

Part Drawing
1. Finished product delivery
Zip Track shutter factory after assembly test passed, packaging delivery (shutter + motor + cover shell assembly packaging; Track assembly packaging)
2. Size limitation
Zip Track shutter factory after assembly test passed, packaging delivery (shutter + motor + cover shell assembly packaging; Track assembly packaging)
Motor selection :10N/50N
The standard configuration of windproof shutter motor is the built-in silent ION motor (used within 4m’), greater than 4m’, each set of 50N motor;
Remote Control:
Single frequency: A remote control intelligently controls a motor. Dual frequency ：A remote control can respectively control two motors (curtain), can not control two together lifting ；Multi-frequency ： A remote control can simultaneously control 15 motors (rolling curtains) at the same time up and down.
Fabric FAQ Answer
1. What is the shading effect of the fabric ?
Sunlight fabric according to the opening rate to divide, there are full shading and half shading two; Full shading is100% shading rate, 0 light transmission (positive and negative color the same), shading effect is good, durable, shading effect is better than all kinds of traditional internal shading, semi-shading 2%, 5%, 10%, 20%, etc., can be freely customized, light/scenery/breathable/rain/mosquito prevention.
2. What is the opening rate ?
Take the fabric with 2% porosity as an example, that is, all the holes in a piece of fabric are gathered together, accounting for 2% of the total area of the whole fabric, which is called 2% porosity.
3. Installed in the outdoor, rainy day seep water ?
Because the holes on the fabric are very small and the surface of the fabric is very smooth, the fabric with 5% and 10% opening rate will not penetrate into the fabric when the rain is raining, except the fabric with more than 10% opening rate.
4. Will the wind and rain blow it ?
Windproof curtain is different from the traditional hand-pulled shade curtain and curtain, the top of the cloth is fixed in the tube, the lower part is fixed in the lower rod, the two sides of the fabric are welded with zipper, down the zipper lock on both sides of the plastic track, the plastic track is wrapped in aluminum alloy track, fixed on the wall; The fabric is fixed up and down around the left and right, plus the fabric holes, with air permeability, will not swing in the face of strong wind, can resist the wind of 8-10.
